Kea DHCP Workshop @ Heise, März 2023

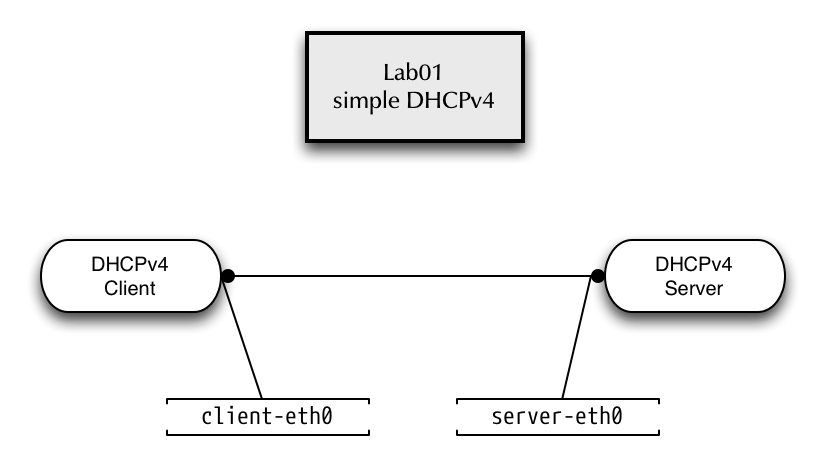

• Start a root-shell

  [host]$ sudo -i


• Change to /root/lab/lab01

  [host]% cd /root/lab/lab01


• start the ./run shell script to start the containers client and kea-server. Some error messages are expected when running this script (the script first tries to clean up running container that are not started at this point)
• check the running container with the command running

  [host]% running
  kea-server
  client


• Enter the KEA-Server container

[host]% enter kea-server

• Create the Kea DHCP Server configuration file /etc/kea/kea-dhcp4.conf

{
"Dhcp4": {
    "interfaces-config": {
        "interfaces": [ "server-eth0" ],
        "dhcp-socket-type": "raw"
    },
    "control-socket": {
        "socket-type": "unix",
        "socket-name": "/tmp/kea-dhcp4.socket"
    },
    "lease-database": {
        "type": "memfile",
        "lfc-interval": 3600
    },
    "renew-timer": 900,
    "rebind-timer": 1800,
    "valid-lifetime": 3600,
    "subnet4": [
        {
            "subnet": "192.0.2.0/24",
            "pools": [ { "pool": "192.0.2.100 - 192.0.2.200" } ],
            "option-data": [
                {
                    "name": "routers",
                    "data": "192.0.2.1"
                }
            ]
        }
    ]},
    "loggers": [
    {
        "name": "kea-dhcp4",
        "output_options": [
            {
                "output": "/var/log/kea-dhcp4.log"
            }
        ],
        "severity": "INFO",
        "debuglevel": 0
    }
  ]
}
}

• Check the syntax of the Kea DHCP4 configuration file. This time, the Kea-DHCP4 syntax check should return with an error

% kea-dhcp4 -t /etc/kea/kea-dhcp4.conf
Syntax check failed with: /etc/kea/kea-dhcp4.conf:29.7: syntax error, unexpected ",", expecting }

• Try to fix the error and check again

• Successful Syntax check

% kea-dhcp4 -t /etc/kea/kea-dhcp4.conf
INFO  [kea-dhcp4.dhcpsrv/51] DHCPSRV_CFGMGR_ADD_IFACE listening on interface server-eth0
INFO  [kea-dhcp4.dhcpsrv/51] DHCPSRV_CFGMGR_SOCKET_TYPE_DEFAULT "dhcp-socket-type" not specified , using default socket type raw
INFO  [kea-dhcp4.dhcpsrv/51] DHCPSRV_CFGMGR_NEW_SUBNET4 a new subnet has been added to configuration: 192.0.2.0/24 with params: t1=900, t2=1800, valid-lifetime=3600

• Start the KEA DHCPv4 server module via systemd

% systemctl start kea-dhcp4

• Check the status of the service

% systemctl status kea-dhcp4
● kea-dhcp4.service - Kea DHCPv4 Server
   Loaded: loaded (/usr/lib/systemd/system/kea-dhcp4.service; disabled; vendor preset: disabled)
   Active: active (running) since Thu 2018-12-06 10:13:26 UTC; 4s ago
     Docs: man:kea-dhcp4(8)
 Main PID: 63 (kea-dhcp4)
    Tasks: 1 (limit: 1144)
   Memory: 1.9M
   CGroup: /machine.slice/libpod-2e3e4a67333cf94630baa9c268ae84f8e77353abf14b074ed2ef9d73bc6e4f53.scope/system.slice/kea-dhcp4.service
           └─63 /usr/sbin/kea-dhcp4 -c /etc/kea/kea-dhcp4.conf

Dec 06 10:13:26 2e3e4a67333c systemd[1]: Started Kea DHCPv4 Server.
Dec 06 10:13:26 2e3e4a67333c kea-dhcp4[63]: 2018-12-06 10:13:26.674 INFO  [kea-dhcp4.dhcp4/63] DHCP4_STARTING Kea DHCPv4 server version 1.3.0 starting
Dec 06 10:13:26 2e3e4a67333c kea-dhcp4[63]: 2018-12-06 10:13:26.676 INFO  [kea-dhcp4.dhcpsrv/63] DHCPSRV_CFGMGR_ADD_IFACE listening on interface server-eth0
Dec 06 10:13:26 2e3e4a67333c kea-dhcp4[63]: 2018-12-06 10:13:26.676 INFO  [kea-dhcp4.dhcpsrv/63] DHCPSRV_CFGMGR_SOCKET_TYPE_DEFAULT "dhcp-socket-type" not specified , using default socke>
Dec 06 10:13:26 2e3e4a67333c kea-dhcp4[63]: 2018-12-06 10:13:26.677 INFO  [kea-dhcp4.dhcpsrv/63] DHCPSRV_CFGMGR_NEW_SUBNET4 a new subnet has been added to configuration: 192.0.2.0/24 wit>
Dec 06 10:13:26 2e3e4a67333c kea-dhcp4[63]: 2018-12-06 10:13:26.677 INFO  [kea-dhcp4.dhcp4/63] DHCP4_CONFIG_COMPLETE DHCPv4 server has completed configuration: added IPv4 subnets: 1; DDN>
Dec 06 10:13:26 2e3e4a67333c kea-dhcp4[63]: 2018-12-06 10:13:26.677 INFO  [kea-dhcp4.dhcpsrv/63] DHCPSRV_MEMFILE_DB opening memory file lease database: lfc-interval=3600 type=memfile uni>
Dec 06 10:13:26 2e3e4a67333c kea-dhcp4[63]: 2018-12-06 10:13:26.679 INFO  [kea-dhcp4.dhcpsrv/63] DHCPSRV_MEMFILE_LEASE_FILE_LOAD loading leases from file /var/lib/kea/kea-leases4.csv
Dec 06 10:13:26 2e3e4a67333c kea-dhcp4[63]: 2018-12-06 10:13:26.680 INFO  [kea-dhcp4.dhcpsrv/63] DHCPSRV_MEMFILE_LFC_SETUP setting up the Lease File Cleanup interval to 3600 sec

• On a different Terminal (TMUX pane or window)
• Enter the client container

% enter client

• Interface client-eth0 should have no IP configuration

# ip addr show
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
10: client-eth0@if9: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether fa:34:f8:0e:a4:ff brd ff:ff:ff:ff:ff:ff link-netnsid 1
    inet6 fe80::f834:f8ff:fe0e:a4ff/64 scope link
       valid_lft forever preferred_lft forever

• Manually start the ISC DHCP client

[client]% dhclient -v client-eth0
Internet Systems Consortium DHCP Client 4.4.2b1
Copyright 2004-2019 Internet Systems Consortium.
All rights reserved.
For info, please visit https://www.isc.org/software/dhcp/

Listening on LPF/client-eth0/72:28:b2:66:0d:f5
Sending on   LPF/client-eth0/72:28:b2:66:0d:f5
Sending on   Socket/fallback
DHCPDISCOVER on client-eth0 to 255.255.255.255 port 67 interval 3 (xid=0xb1f0b267)
DHCPOFFER of 192.0.2.100 from 192.0.2.1
DHCPREQUEST for 192.0.2.100 on client-eth0 to 255.255.255.255 port 67 (xid=0xb1f0b267)
DHCPACK of 192.0.2.100 from 192.0.2.1 (xid=0xb1f0b267)
bound to 192.0.2.100 -- renewal in 847 seconds.

• KEA-DHCP DHCPv4 Lease-file on the server side

[kea-server]% cat /var/lib/kea/kea-leases4.csv
address,hwaddr,client_id,valid_lifetime,expire,subnet_id,fqdn_fwd,fqdn_rev,hostname,state
192.0.2.100,9e:81:8f:31:62:85,ff:8f:31:62:85:00:04:22:6c:05:90:05:96:45:33:8d:ab:47:f1:1b:bf:66:0a,3600,1544097000,1,0,0,,0

• A KEA-DHCP server takes control commands over a unix socket. The socket location is defined in the KEA-Server configuration file. Make sure the socket definition for the DHCPv4 server looks like this

{
    "Dhcp4": {
        "control-socket": {
            "socket-type": "unix",
            "socket-name": "/var/lib/kea/kea-dhcp4.socket"
        },
        "valid-lifetime": 3600,
[...]

• Test the configuration and restart the service

[kea-server]% kea-dhcp4 -t /etc/kea/kea-dhcp4.conf
[kea-server]% systemctl restart kea-dhcp4

• On the Kea-Server machine, create a configuration for the KEA Control Agent in the file /etc/kea/kea-ctrl-agent.conf, listening on an HTTP-REST API Endpoint port 9099 on IPv6 localhost:

{
    "Control-agent": {
        "http-host": "::1",
        "http-port": 9099,
        "control-sockets": {
            "dhcp4": {
                "socket-type": "unix",
                "socket-name": "/var/lib/kea/kea-dhcp4.socket"
            }
        },
        "loggers": [
            {
                "name": "kea-ctrl-agent",
                "severity": "INFO",
                "output_options": [
                    {
                    "output": "/var/log/kea-ctrl-agent.log"
                    }
                ]
            }
        ]
    }
}

• Check the configuration file for syntax errors

[kea-server]% kea-ctrl-agent -t /etc/kea/kea-ctrl-agent.conf

• test the control agent configuration and start the agent:

[kea-server]% systemctl start kea-ctrl-agent
[kea-server]% systemctl status kea-ctrl-agent
● kea-ctrl-agent.service - Kea Control Agent
   Loaded: loaded (/etc/systemd/system/kea-ctrl-agent.service; disabled; vendor preset: disabled)
   Active: active (running) since Sun 2018-12-09 21:33:12 UTC; 1s ago
     Docs: man:kea-ctrl-agent(8)
 Main PID: 361 (kea-ctrl-agent)
    Tasks: 1 (limit: 1144)
   Memory: 1.8M
   CGroup: /machine.slice/libpod-5c5b9d031716ba7b04e2726f7c6f7ef48cdd95d4bbac8c51e7fb591fb7c900c1.scope/system.slice/kea-ctrl-agent.service
           └─361 /usr/sbin/kea-ctrl-agent -c /etc/kea/kea-ctrl-agent.conf

Dec 09 21:33:12 5c5b9d031716 systemd[1]: Started Kea Control Agent.
Dec 09 21:33:12 5c5b9d031716 kea-ctrl-agent[361]: 2018-12-09 21:33:12.528 INFO  [kea-ctrl-agent.dctl/361] DCTL_STARTING Control-agent starting, pid: 361, version: 1.3.0
Dec 09 21:33:12 5c5b9d031716 kea-ctrl-agent[361]: 2018-12-09 21:33:12.531 INFO  [kea-ctrl-agent.ctrl-agent/361] CTRL_AGENT_HTTP_SERVICE_STARTED HTTP service bound to address ::1:90>
Dec 09 21:33:12 5c5b9d031716 kea-ctrl-agent[361]: 2018-12-09 21:33:12.531 INFO  [kea-ctrl-agent.dctl/361] DCTL_CONFIG_COMPLETE server has completed configuration: listening on ::1,>

• Sending API calls via curl. Here we send the config-get command to the DHCPv4 server

[kea-server]% curl -X POST -H "Content-Type: application/json" \
  -d '{ "command": "config-get", "service": [ "dhcp4" ] }' \
  http://[::1]:9099/

• The output is unformatted JSON. The tool jq can be used to pretty-print the output

[kea-server]% curl --no-progress-meter -X POST -H "Content-Type: application/json" \
   -d '{ "command": "config-get", "service": [ "dhcp4" ] }' \
   http://[::1]:9099/ | jq .

• jq can be used to filter specific parts of the configuration. The jq filter ".[0].arguments" can be used to produce a valid KEA configuration file:

[kea-server]% curl --no-progress-meter -s -X POST -H "Content-Type: application/json" \
  -d '{ "command": "config-get", "service": [ "dhcp4" ] }' \
  http://[::1]:9099/ | jq ".[0].arguments.Dhcp4.loggers"
[
  {
    "debuglevel": 0,
    "name": "kea-dhcp4",
    "output_options": [
      {
        "output": "/var/log/kea-dhcp4.log"
      }
    ],
    "severity": "INFO"
  }
]

• The list-commands command returns back the API commands available for a specific KEA module

[kea-server]% curl --no-progress-meter -X POST -H "Content-Type: application/json" \
  -d '{ "command": "list-commands", "service": [ "dhcp4" ] }' \
  http://[::1]:9099/ | jq

• Dump the current configuration into the file kea-dhcp4.tmp

[kea-server]% curl --no-progress-meter -s -X POST -H "Content-Type: application/json" \
     -d '{ "command": "config-get",  "service": [ "dhcp4" ] }' \
     http://[::1]:9099/ | jq ".[0]" > kea-dhcp4.tmp

• Edit the file, add the command and service information, remove the result structure at the end of the file and make changes to the configuration (in this example we set the DHCP server to be authoritative):

{
  "command": "config-set",
  "service": [ "dhcp4" ],
  "arguments": {
    "Dhcp4": {
      "authoritative": true,
      "boot-file-name": "",
      "calculate-tee-times": false,
[...]

• Send the new configuration to the server

[kea-server]% curl --no-progress-meter -s -X POST \
   -H "Content-Type: application/json" \
   -d @kea-dhcp4.tmp http://[::1]:9099/ | jq .

• Successful result

[
  {
    "result": 0,
    "text": "Configuration successful."
  }
]

• All dynamic changes are stored in memory. In order to make the changes persistent, write the in-memory configuration back to a file (be careful, any comments in the file will be gone and the formatting will be different)

[kea-server]% curl --no-progress-meter -s -X POST -H "Content-Type: application/json" \
                   -d '{ "command": "config-write", "arguments": { "filename": "/etc/kea/kea-dhcp4-new.json" }, "service": [ "dhcp4" ] }' \
                   http://[::1]:9099/ | jq .

• Successful result

[
  {
    "arguments": {
      "filename": "/etc/kea/kea-dhcp4-new.json",
      "size": 3248
    },
    "result": 0,
    "text": "Configuration written to /etc/kea/kea-dhcp4-new.json successful"
  }
]

• Exit both the Kea-Server container and the client container
• Execute both the ./stop and the ./clean scripts on the host (inside directory /root/lab/lab01)

• We work in directory lab02 and start the lab container

[host]% cd /root/lab/lab02
[host]% ./run

• We will start the DHCPv4 relay agent on the container named "relay"

[host]% enter relay

• The relay agent will listen on interface relay1-eth0 for DHCP broadcast messages and will forward these messages to the Kea-DHCP-Server on address 100.64.0.1

[relay]%  dhcrelay -id relay1-eth0 -iu relay2-eth0 -d 100.64.0.1
Requesting: relay1-eth0 as upstream: N downstream: Y
Requesting: relay2-eth0 as upstream: Y downstream: N
Dropped all unnecessary capabilities.
Internet Systems Consortium DHCP Relay Agent 4.4.2b1
Copyright 2004-2019 Internet Systems Consortium.
All rights reserved.
For info, please visit https://www.isc.org/software/dhcp/
Listening on LPF/relay2-eth0/d2:90:88:da:b9:48
Sending on   LPF/relay2-eth0/d2:90:88:da:b9:48
Listening on LPF/relay1-eth0/f6:94:7a:a5:69:9d
Sending on   LPF/relay1-eth0/f6:94:7a:a5:69:9d
Sending on   Socket/fallback
Dropped all capabilities.

• On a different terminal (tmux pane or window), we enter the Kea DHCP server container

[host]% enter kea-server

• As the DHCP requests from clients will now be received by the Kea-Server via UDP unicast, we can configure Kea to listen on UDP socket only: "dhcp-socket-type": "udp"
• Edit the file /etc/kea/kea-dhcp4.conf:

{
"Dhcp4": {
    "interfaces-config": {
        "interfaces": [ "server-eth0" ],
        "dhcp-socket-type": "udp"
    },
[...]

• Test the Kea DHCP4 configuration file

  [kea-server]% kea-dhcp4 -t /etc/kea/kea-dhcp4.conf


• Start the Kea-Server and make sure it is running

[kea-server]% systemctl start kea-dhcp4
[kea-server]% systemctl status kea-dhcp4
● kea-dhcp4.service - Kea DHCPv4 Server
   Loaded: loaded (/usr/lib/systemd/system/kea-dhcp4.service; disabled; vendor preset: disabled)
   Active: active (running) since Thu 2018-12-06 20:26:05 UTC; 3s ago
     Docs: man:kea-dhcp4(8)
 Main PID: 47 (kea-dhcp4)
    Tasks: 1 (limit: 1144)
   Memory: 9.2M
   CGroup: /machine.slice/libpod-131e8c63aa04d242f4f9c4037b0106eb88a56b03b2bf6e639e306df2e06dd09c.scope/system.slice/kea-dhcp4.service
           └─47 /usr/sbin/kea-dhcp4 -c /etc/kea/kea-dhcp4.conf

Dec 06 20:26:05 131e8c63aa04 systemd[1]: Started Kea DHCPv4 Server.
Dec 06 20:26:05 131e8c63aa04 kea-dhcp4[47]: 2018-12-06 20:26:05.450 INFO  [kea-dhcp4.dhcp4/47] DHCP4_STARTING Kea DHCPv4 server version 1.3.0 starting
Dec 06 20:26:05 131e8c63aa04 kea-dhcp4[47]: 2018-12-06 20:26:05.457 INFO  [kea-dhcp4.dhcpsrv/47] DHCPSRV_CFGMGR_SOCKET_TYPE_SELECT using socket type udp
Dec 06 20:26:05 131e8c63aa04 kea-dhcp4[47]: 2018-12-06 20:26:05.458 INFO  [kea-dhcp4.dhcpsrv/47] DHCPSRV_CFGMGR_ADD_IFACE listening on interface server-eth0
Dec 06 20:26:05 131e8c63aa04 kea-dhcp4[47]: 2018-12-06 20:26:05.465 INFO  [kea-dhcp4.dhcpsrv/47] DHCPSRV_CFGMGR_NEW_SUBNET4 a new subnet has been added to configuration: 192.0.2.0/24 wit>
Dec 06 20:26:05 131e8c63aa04 kea-dhcp4[47]: 2018-12-06 20:26:05.466 INFO  [kea-dhcp4.dhcp4/47] DHCP4_CONFIG_COMPLETE DHCPv4 server has completed configuration: added IPv4 subnets: 1; DDN>
Dec 06 20:26:05 131e8c63aa04 kea-dhcp4[47]: 2018-12-06 20:26:05.467 INFO  [kea-dhcp4.dhcpsrv/47] DHCPSRV_MEMFILE_DB opening memory file lease database: lfc-interval=3600 type=memfile uni>
Dec 06 20:26:05 131e8c63aa04 kea-dhcp4[47]: 2018-12-06 20:26:05.469 INFO  [kea-dhcp4.dhcpsrv/47] DHCPSRV_MEMFILE_LEASE_FILE_LOAD loading leases from file /var/lib/kea/kea-leases4.csv
Dec 06 20:26:05 131e8c63aa04 kea-dhcp4[47]: 2018-12-06 20:26:05.470 INFO  [kea-dhcp4.dhcpsrv/47] DHCPSRV_MEMFILE_LFC_SETUP setting up the Lease File Cleanup interval to 3600 sec

• Next, on a third terminal (tmux pane or window), enter the client container

[host]% enter client

• Start the dhclient program to request a DHCP lease

[client]% dhclient -v client-eth0
Internet Systems Consortium DHCP Client 4.3.6
Copyright 2004-2017 Internet Systems Consortium.
All rights reserved.
For info, please visit https://www.isc.org/software/dhcp/

Listening on LPF/client-eth0/b2:b9:2e:f6:5e:65
Sending on   LPF/client-eth0/b2:b9:2e:f6:5e:65
Sending on   Socket/fallback
DHCPDISCOVER on client-eth0 to 255.255.255.255 port 67 interval 6 (xid=0xe8e47a25)
DHCPREQUEST on client-eth0 to 255.255.255.255 port 67 (xid=0xe8e47a25)
DHCPOFFER from 192.0.2.1
DHCPACK from 192.0.2.1 (xid=0xe8e47a25)
bound to 192.0.2.109 -- renewal in 847 seconds.

• Log output on the relay

Forwarded BOOTREQUEST for b2:b9:2e:f6:5e:65 to 100.64.0.1
Forwarded BOOTREPLY for b2:b9:2e:f6:5e:65 to 192.0.2.109
Forwarded BOOTREQUEST for b2:b9:2e:f6:5e:65 to 100.64.0.1
Forwarded BOOTREPLY for b2:b9:2e:f6:5e:65 to 192.0.2.109

• The ISC DHCP Client executes a shell script to configure the operating system with the DHCP lease information. While the dhclient binary is the same of different operating systems (Linux, BSD, commercial Unix), the shell script takes over the system dependent part
• the lease parameters are given to the script in form of environment variables that can be printed out with the env shell command
• in the client container, create a new shell script with the name dhclient-debug.sh and the following content

  #!/bin/sh
  env


• Make the script executable

  [client]% chmod +x dhclient-debug.sh


• Stop a previous running dhclient process

  [client]% dhclient -r


• Start the dhclient program using the script and inspect the output.

  [client]% dhclient -v -sf dhclient-debug.sh client-eth0


• On the Kea-Server container, observe the DHCP communication between the relay-agent and the DHCP-Server using tcpdump.

  [kea-server]% tcpdump -vv -i server-eth0 port 67 or port 68


• Start a new client lease request from the client (dhclient -r releases the current lease).

  [client]% dhclient -r
  [client]% dhclient -v -sf dhclient-debug.sh client-eth0


• Exit the client, relay and kea-server machines
• Execute the scripts ./stop and ./clean in /root/kea/lab02/ on the host

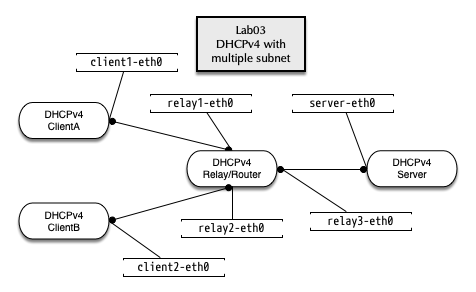

• Change into the directory /root/lab/lab03 on the VM host
• Execute the ./run script

• Enter the kea-server container

  % enter kea-server


• Add a new subnet for 198.100.51.0/24 to the Kea DHCP4 configuration

[...]
    "subnet4": [
        {
            "subnet": "192.0.2.0/24",
            "pools": [ { "pool": "192.0.2.100 - 192.0.2.200" } ],
            "option-data": [
                {
                    "name": "routers",
                    "data": "192.0.2.1"
                }
            ]
        },
        {
            "subnet": "198.100.51.0/24",
            "pools": [ { "pool": "198.100.51.50 - 198.100.51.90" } ],
            "option-data": [
                {
                    "name": "routers",
                    "data": "198.100.51.1"
                }
            ]
        }
[...]

• Test the configuration file:

[kea-server]% kea-dhcp4 -t /etc/kea/kea-dhcp4.conf
INFO  [kea-dhcp4.dhcpsrv/48] DHCPSRV_CFGMGR_SOCKET_TYPE_SELECT using socket type udp
INFO  [kea-dhcp4.dhcpsrv/48] DHCPSRV_CFGMGR_ADD_IFACE listening on interface server-eth0
INFO  [kea-dhcp4.dhcpsrv/48] DHCPSRV_CFGMGR_NEW_SUBNET4 a new subnet has been added to configuration: 192.0.2.0/24 with params: t1=900, t2=1800, valid-lifetime=3600
INFO  [kea-dhcp4.dhcpsrv/48] DHCPSRV_CFGMGR_NEW_SUBNET4 a new subnet has been added to configuration: 198.100.51.0/24 with params: t1=900, t2=1800, valid-lifetime=3600

• Start the Kea DHCPv4 server and make sure it is running

[kea-server]% systemctl start kea-dhcp4
[kea-server]% systemctl status kea-dhcp4
● kea-dhcp4.service - Kea DHCPv4 Server
   Loaded: loaded (/usr/lib/systemd/system/kea-dhcp4.service; disabled; vendor preset: disabled)
   Active: active (running) since Fri 2018-12-07 06:26:46 UTC; 5s ago
     Docs: man:kea-dhcp4(8)
 Main PID: 54 (kea-dhcp4)
    Tasks: 1 (limit: 1144)
   Memory: 1.9M
   CGroup: /machine.slice/libpod-86d66477595de7e99c051c8f5b9c224d5e566cdbd3edbd5562a8b6fe09bc241a.scope/system.slice/kea-dhcp4.service
           └─54 /usr/sbin/kea-dhcp4 -c /etc/kea/kea-dhcp4.conf

Dec 07 06:26:46 86d66477595d systemd[1]: Started Kea DHCPv4 Server.
Dec 07 06:26:46 86d66477595d kea-dhcp4[54]: 2018-12-07 06:26:46.515 INFO  [kea-dhcp4.dhcp4/54] DHCP4_STARTING Kea DHCPv4 server version 1.3.0 starting
Dec 07 06:26:46 86d66477595d kea-dhcp4[54]: 2018-12-07 06:26:46.518 INFO  [kea-dhcp4.dhcpsrv/54] DHCPSRV_CFGMGR_SOCKET_TYPE_SELECT using socket type udp
Dec 07 06:26:46 86d66477595d kea-dhcp4[54]: 2018-12-07 06:26:46.518 INFO  [kea-dhcp4.dhcpsrv/54] DHCPSRV_CFGMGR_ADD_IFACE listening on interface server-eth0
Dec 07 06:26:46 86d66477595d kea-dhcp4[54]: 2018-12-07 06:26:46.519 INFO  [kea-dhcp4.dhcpsrv/54] DHCPSRV_CFGMGR_NEW_SUBNET4 a new subnet has been added to configuration: 192.0.2.0/24 wit>
Dec 07 06:26:46 86d66477595d kea-dhcp4[54]: 2018-12-07 06:26:46.519 INFO  [kea-dhcp4.dhcpsrv/54] DHCPSRV_CFGMGR_NEW_SUBNET4 a new subnet has been added to configuration: 198.100.51.0/24 >
Dec 07 06:26:46 86d66477595d kea-dhcp4[54]: 2018-12-07 06:26:46.519 INFO  [kea-dhcp4.dhcp4/54] DHCP4_CONFIG_COMPLETE DHCPv4 server has completed configuration: added IPv4 subnets: 2; DDN>
Dec 07 06:26:46 86d66477595d kea-dhcp4[54]: 2018-12-07 06:26:46.520 INFO  [kea-dhcp4.dhcpsrv/54] DHCPSRV_MEMFILE_DB opening memory file lease database: lfc-interval=3600 type=memfile uni>
Dec 07 06:26:46 86d66477595d kea-dhcp4[54]: 2018-12-07 06:26:46.521 INFO  [kea-dhcp4.dhcpsrv/54] DHCPSRV_MEMFILE_LEASE_FILE_LOAD loading leases from file /var/lib/kea/kea-leases4.csv
Dec 07 06:26:46 86d66477595d kea-dhcp4[54]: 2018-12-07 06:26:46.521 INFO  [kea-dhcp4.dhcpsrv/54] DHCPSRV_MEMFILE_LFC_SETUP setting up the Lease File Cleanup interval to 3600 sec

• On a new terminal, enter the relay container and start the ISC DHCP relay agent

  % enter relay


• Start the ISC DHCP relay-agent

[relay]% dhcrelay -id relay1-eth0 -id relay2-eth0 -iu relay3-eth0 -d 100.64.0.1
Requesting: relay1-eth0 as upstream: N downstream: Y
Requesting: relay2-eth0 as upstream: N downstream: Y
Requesting: relay3-eth0 as upstream: Y downstream: N
Dropped all unnecessary capabilities.
Internet Systems Consortium DHCP Relay Agent 4.3.6
Copyright 2004-2017 Internet Systems Consortium.
All rights reserved.
For info, please visit https://www.isc.org/software/dhcp/
Listening on LPF/relay3-eth0/8e:07:03:58:67:e4
Sending on   LPF/relay3-eth0/8e:07:03:58:67:e4
Listening on LPF/relay2-eth0/46:eb:a0:16:f0:8b
Sending on   LPF/relay2-eth0/46:eb:a0:16:f0:8b
Listening on LPF/relay1-eth0/26:fd:31:a7:6f:42
Sending on   LPF/relay1-eth0/26:fd:31:a7:6f:42
Sending on   Socket/fallback
Dropped all capabilities.

• Test the DHCP Client from container clientA and clientB (each in it's own Terminal or TMUX session)

[host]% enter clientA
[clientA]% dhclient -v client1-eth0
[host]% enter clientB
[clientB]% dhclient -v client2-eth0

• ClientA will succeed to get an IP-Address, but ClientB will fail. Why?
• Check the logfile on the Kea-Server in /var/log/kea-dhcp4.log
• Compare the IP-Addresses used on the relay with the IP addresses used in the subnet configuration on the Kea server

• Correct subnet configuration (198.51.100.0/24 instead of 198.100.51.0/24):

[...]
    "subnet4": [
        {
            "subnet": "192.0.2.0/24",
            "pools": [ { "pool": "192.0.2.100 - 192.0.2.200" } ],
            "option-data": [
                {
                    "name": "routers",
                    "data": "192.0.2.1"
                }
            ]
        },
        {
            "subnet": "198.51.100.0/24",
            "pools": [ { "pool": "198.51.100.50 - 198.51.100.90" } ],
            "option-data": [
                {
                    "name": "routers",
                    "data": "198.51.100.1"
                }
            ]
        }

[...]

• Re-test the configuration and restart the server, test from clientB

• Kea DHCP supports reservations of client leases based on hardware interface addresses (MAC-Address), DHCP Unique ID (DUID), Relay-Circut-ID or Client-ID. Lookup the Hardware-MAC-Address of your clientA machine with the command ip link show and create a reservation based on that hardware address:

[...]
        "subnet4": [
            {
                "subnet": "192.0.2.0/24",
                "pools": [
                    {
                        "pool": "192.0.2.100 - 192.0.2.200"
                    }
                ],
                "option-data": [
                    {
                        "name": "routers",
                        "data": "192.0.2.1"
                    },
                    {
                        "name": "domain-name",
                        "data": "a.example.com"
                    }
                ],
                "reservations": [
                    {
                        "hw-address": "xx:xx:xx:xx:xx:xx",
                        "ip-address": "192.0.2.210",
                        "hostname": "client.a"
                    }
                ]
            },
[...]

• Test the configuration and restart the Kea DHCPv4 server
• Check from clientA that the reserved IPv4 address is assigned and the hostname is delivered:

[clientA]% dhclient -r
Killed old client process
[ClientA]% dhclient -v -sf dhclient-debug.sh client1-eth0  | grep host_name
Internet Systems Consortium DHCP Client 4.3.6
Copyright 2004-2017 Internet Systems Consortium.
All rights reserved.
For info, please visit https://www.isc.org/software/dhcp/

Listening on LPF/client1-eth0/6a:52:4e:6c:ee:3d
Sending on   LPF/client1-eth0/6a:52:4e:6c:ee:3d
Sending on   Socket/fallback
DHCPREQUEST on client1-eth0 to 255.255.255.255 port 67 (xid=0xa4d0bd0c)
DHCPACK from 192.0.2.1 (xid=0xa4d0bd0c)
requested_host_name=1
new_host_name=client.a
bound to 192.0.2.210 -- renewal in 833 seconds.

• Enter the kea-server container
• Initialize and start the PostgreSQL Database

[kea-server]% /usr/bin/postgresql-setup --initdb
[kea-server]% systemctl enable --now postgresql

• Connect to the database server. This PostgreSQL-Server does not have a password set, use the empty password to log in. For a production installation, configure password authentication for the database server. PostgreSQL authentication configuration is out of scope of the ISC Kea DHCP training.

[kea-server]% su - postgres
[kea-server]$ psql postgres
psql (13.4)
Type "help" for help.

postgres=#

• Create a new database, kea_lease_db is the name of the database in this example

postgres=# CREATE DATABASE kea_lease_db;
CREATE DATABASE

• Create a user for Kea server to access the database

postgres=# CREATE USER kea WITH PASSWORD 'secure-password';
CREATE ROLE

• Set the permissions for the new user on the database

postgres=# GRANT ALL PRIVILEGES ON DATABASE kea_lease_db TO kea;
GRANT

• Leave PostgreSQL client

postgres=# \q

• Leave the shell with user postgres to be user root again

[kea-server]$ exit
[kea-server]% id
uid=0(root) gid=0(root) groups=0(root)

• Configure the PostgreSQL Database to use password authentication for the Kea database. The Kea database entries must appear before the all database entries in the file /var/lib/pgsql/data/pg_hba.conf

# TYPE  DATABASE        USER            ADDRESS                 METHOD
local   kea_lease_db    kea                                 password
host    kea_lease_db    kea          127.0.0.1/32           password
host    kea_lease_db    kea          ::1/128                password

# "local" is for Unix domain socket connections only
local   all             all                                     peer
[...]

• Restart the PostgreSQL database server

[kea-server]% systemctl restart postgresql

• Create the database tables using the kea-admin tool

[kea-server]% kea-admin db-init pgsql -u kea -h 127.0.0.1 -p secure-password -n kea_lease_db

• Adjust the lease-database block in the Kea server configuration to use a PostgreSQL-type database:

[...]
        "lease-database": {
          "type": "postgresql",
          "host": "localhost",
          "name": "kea_lease_db",
          "user": "kea",
          "password": "secure-password"
        },
[...]

• Make sure each subnet definition in the Kea configuration file has an subnet-id number set! Without an ID number being set, Kea will auto-generate numeric IDs which might create collisions in case the subnet configuration will change later

[...]
                    {
                        "subnet": "192.0.2.0/26",
			"id": 1000,
                        "option-data": [
                            {   "name": "routers", "data": "192.0.2.1" }
                        ],
                        "pools": [
                            { "pool": "192.0.2.60 - 192.0.2.63" }
                        ]
                    },
                    {
                        "subnet": "10.0.0.0/24",
                  	"id": 1001,
                        "option-data": [
			   {    "name": "routers",  "data": "10.0.0.1"  }
                        ],
                        "pools": [
                            { "pool": "10.0.0.10 - 10.0.0.20" }
                        ]
                    }
[...]

• Test the configuration file and restart the Kea DHCP server
• Start the DHCP-Relay on the relay container

[relay]% dhcrelay -id relay1-eth0 -id relay2-eth0 -iu relay3-eth0 -d 100.64.0.1

• Test requesting a lease from clientA and clientB
• Dump the lease database using the kea-admin tool

[kea-server]% kea-admin lease-dump pgsql -u kea -h 127.0.0.1 -p secure-password -n kea_lease_db -o leases.csv -4
Output file, leases.csv, exists and will be overwritten.
Do you wish to continue? (y/n)
y
lease4 successfully dumped to leases.csv
[kea-server]% less leases.csv
address,hwaddr,client_id,valid_lifetime,expire,subnet_id,fqdn_fwd,fqdn_rev,hostname,state
192.0.2.100,fe15e927353b,ffe927353b000400d52b989bf14fbfaeb1f21908f229d9,3600,2018-12-08 21:39:06+00,1,0,0,,default
198.51.100.50,f2b272a61f8d,ff72a61f8d000405a5b16faf254760879df44a6a58636a,3600,2018-12-08 21:38:01+00,2,0,0,,default

• Exit from the kea-server, relay, clientA and clientB container
• Execute the script ./stop and ./clean in /root/lab/lab03
