Kea DHCP

(Monitoring, Logging and Stork)

Carsten Strotmann, sys4 AG

Created: 2023-03-28 Tue 08:34

Logging

Kea logging configuration

All Kea services provide flexible logging: https://kea.readthedocs.io/en/latest/arm/logging.html
Log output can be written to one or more targets
- to syslog
- to a file
- to stdout or stderr

Kea logging configuration

Example: Logging to stdout and into a file

    "loggers": [{
        "name": "kea-dhcp4",
        "output_options": [
            {
                "output": "stdout",
                "pattern": "%-5p %m\n"
            },{
                "output": "/var/log/kea/kea-dhcp4.log",
                "maxsize": 1048576,
                "maxver": 10
            }
        ],
        "severity": "INFO",
        "debuglevel": 0
    }]
[...]

Kea Logger

The Kea Log-Messages are sent from different logging modules
- the logging modules create a logging hierarchy
  - The Root-Logger is named after the Kea service process
  - Below the Root-Logger are one or more logging modules that can be used to sent specific logging information to other log-targets, or change other logging parameters such as the severity
a list of Loggers supported by Kea servers and hook-libraries can be found in the Kea documentation https://kea.readthedocs.io/en/latest/arm/logging.html#the-name-string-logger

Kea Logger

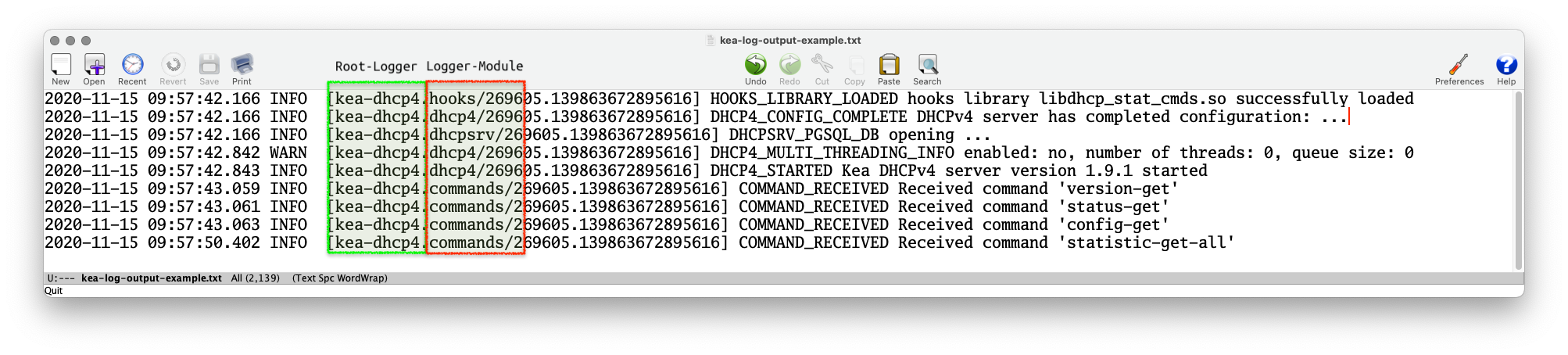

The name of the logging module that created a log message can be found in the log output (when using the default log pattern for files)

Logging to syslog

Using the output parameter of syslog will sent the log messages of the chosen logger to the syslog daemon
- If a different service name should be used for the syslog messages, the service name can be specified in the format syslog:name

[...]
    "loggers": [{
        "name": "kea-dhcp4",
        "output_options": [
            { "output": "syslog:dhcp4" }
        ],
        "severity": "WARN", "debuglevel": 0
    }]
[...]

Logging to a file

When logging to a file, the parameter output specifies the file name
- file rollover can be specified with the maxsize (size of log-file in bytes) and maxver (number of log-file generations)

Logging Message Format

The content of the log messages can be controlled with the pattern option
- The pattern used for each message is described by a string containing one or more format components as part of a text string
- In addition to the components the string may contain any other arbitrary text you find useful.
- The Log4Cplus documentation provides information on the pattern format string: https://log4cplus.sourceforge.io/

Logging Message Format

Example: the pattern definition below …

{
   "output": "....",
   "pattern": "%D{%Y-%m-%d %H:%M:%S.%q} %-5p [%c/%i.%t] %m\n"
},

… will create a log entry similar to this one:

2019-08-05 14:27:45.871 DEBUG [kea-dhcp4.dhcpsrv/8475.12345] DHCPSRV_TIMERMGR_START_TIMER starting timer: reclaim-expired-leases

Kea and Systemd Journal

when a Kea service is running under control of systemd, the logging output written to stdout will be stored in the systemd journal

[...]
    "loggers": [{
        "name": "kea-dhcp4",
        "output_options": [
            {
                "output": "stdout",
                "pattern": "%-5p %m\n"
            }
        ],
        "severity": "INFO",
        "debuglevel": 0
    }]
[...]

Kea and Systemd Journal

Systemd-Journal entries can be queried with a filter language
- easier than filtering through log files (if you don't know awk and perl)
- systemd-journald data can be sent via an encrypted and authenticated connection to a central systemd-journald log host
- see the journalctl documentation for details

# journalctl --since today -u kea-dhcp4 --grep DHCP4_LEASE_ADVERT
-- Logs begin at Fri 2020-09-18 11:20:45 CEST, end at Sat 2020-11-14 09:24:50 CET. --
Nov 14 00:00:00 home01 kea-dhcp4[244218]: INFO  DHCP4_LEASE_ADVERT [hwtype=1 00:0d:93:29:2d:30], cid=[01:00:0d:93:29:2d:30], tid=0xfa7d9468: lease 192.0.2.114 will be a>
Nov 14 00:00:04 home01 kea-dhcp4[244218]: INFO  DHCP4_LEASE_ADVERT [hwtype=1 00:0d:93:29:2d:30], cid=[01:00:0d:93:29:2d:30], tid=0xe998dcab: lease 192.0.2.114 will be a>
Nov 14 00:05:13 home01 kea-dhcp4[244218]: INFO  DHCP4_LEASE_ADVERT [hwtype=1 2e:78:71:ca:da:26], cid=[no info], tid=0x8ddd0a71: lease 192.0.2.115 will be advertised
Nov 14 02:15:06 home01 kea-dhcp4[244218]: INFO  DHCP4_LEASE_ADVERT [hwtype=1 14:c2:13:ed:ba:fb], cid=[01:14:c2:13:ed:ba:fb], tid=0xda0e88bc: lease 192.0.2.23 will be ad>
Nov 14 04:16:09 home01 kea-dhcp4[244218]: INFO  DHCP4_LEASE_ADVERT [hwtype=1 14:c2:13:ed:ba:fb], cid=[01:14:c2:13:ed:ba:fb], tid=0xda0e88be: lease 192.0.2.23 will be ad>
Nov 14 06:01:03 home01 kea-dhcp4[244218]: INFO  DHCP4_LEASE_ADVERT [hwtype=1 14:c2:13:ed:ba:fb], cid=[01:14:c2:13:ed:ba:fb], tid=0xda0e88c0: lease 192.0.2.23 will be ad>
Nov 14 08:04:24 home01 kea-dhcp4[244218]: INFO  DHCP4_LEASE_ADVERT [hwtype=1 14:c2:13:ed:ba:fb], cid=[01:14:c2:13:ed:ba:fb], tid=0xda0e88c3: lease 192.0.2.23 will be ad>

Kea API authorization logging

Starting with Kea 1.9.1, it is possible to restrict the Kea API commands to authorized users
- the authorization information will be logged with the kea-ctrl-agent.http logger:

# ./kea-ctrl-agent -c simple.json
20.10.15 14:05:16.550 INFO  [kea-ctrl-agent.http/174909] HTTP_CLIENT_REQUEST_AUTHORIZED received HTTP request authorized for 'admin'
20.10.15 14:05:16.550 INFO  [kea-ctrl-agent.commands/174909] COMMAND_RECEIVED Received command 'list-commands'

Debug-Logging

Quick option: start KEA DHCP4 in debug mode from the command line. This will automatically enable the highest debugging level
- On a busy server, this will create too much debug information (see next slide for an alternative)

[kea-server]# systemctl stop kea-dhcp4
[kea-server]# kea-dhcp4 -d -c /etc/kea/kea-dhcp4.conf

Debug-Logging

Alternative: enable debug logging on a specific logger only

    "loggers": [{
        "name": "kea-dhcp4",
        "output_options": [
            { "output": "syslog:dhcp4" }
        ],
        "severity": "WARN", "debuglevel": 0
        },{
        "name": "kea-dhcp4.flex-id-hooks",
        "output_options": [ {
            "output": "/var/log/kea/kea-dhcp4-flex-id.log"
        } ],
        "severity": "DEBUG",
        "debuglevel": 55
    } ]
[...]

Performance testing

Kea perfdhcp tool

The Kea development team has published the performance measurement tool (called perfdhcp) that is used to do DHCP performance testing for Kea
Documentation: https://kea.readthedocs.io/en/latest/man/perfdhcp.8.html?highlight=perfdhcp
Usage examples: https://users.isc.org/~tomasz/perfdhcp/dhcp-perf-guide.html#perfdhcp-commandline-examples

Other Monitoring

Leases from a memfile

Mike Miller has created two shell scripts that list the DHCPv4 and DHCPv6 leases from a memfile database
Homepage: https://archive.mgm51.com/sources/kea-scripts.html

% kea-show-leases4.sh
IPAddr          HWAddr              Lease Start           Renew           Expire          Hostname  State
10.20.2.7       z0:z1:d9:z5:7c:36   14400 20150905T113158 20150905T133158 20150905T153158 host1.    0
10.20.2.6       0z:1z:d9:z5:7c:35   14400 20150905T112931 20150905T132931 20150905T152931 .         0
10.20.2.234     zz:75:0z:1a:a0:98   14400 20150905T112029 20150905T132029 20150905T152029 .         0
172.20.2.222    az:z3:cz:c4:4b:00   14400 20150905T110758 20150905T130758 20150905T150758 .         0

Leases from a SQL database

The presenter of this webinar has created a simple python3 script that lists the leases from a PostgreSQL Kea lease database
Source: https://git.sr.ht/~cstrotm/kea-list-leases

% kea-list-leases.py
DHCPv4 leases:  6
IP Address   | Hostname        | HW Addr           | Client-ID            | Subnet ID | lifetime | expire
192.0.2.23   | macbookair      | 14:c2:33:fd:ba:fb | 01:14:c2:33:fd:ba:fb | 1         | 14400    | 2020-11-18T14:11:17+01:00
192.0.2.80   | phone           | 00:02:13:55:5e:23 |                      | 1         | 14400    | 2020-11-18T14:33:32+01:00
192.0.2.120  | linux-fedora    | 3c:09:14:7a:6a:67 | 01:3c:09:14:7a:6a:67 | 1         | 14400    | 2020-11-18T13:24:08+01:00
192.0.2.121  |                 | 80:47:23:e6:38:32 |                      | 1         | 14400    | 2020-11-18T14:48:28+01:00
192.0.2.122  | openbsd         | a8:61:b6:d1:ee:6e | 01:a8:61:b6:d1:ee:6e | 1         | 14400    | 2020-11-18T14:48:42+01:00
192.0.2.242  | nas             | 00:12:47:30:c4:de | 01:00:12:47:30:b4:de | 1         | 14400    | 2020-11-18T14:47:31+01:00

Process Monitoring - keactrl

on the local machine, the command keactrl can be used to check the status of the Kea processes

$ keactrl status
DHCPv4 server: active
DHCPv6 server: inactive
DHCP DDNS: active
Control Agent: active
Netconf agent: inactive
Kea configuration file: /usr/local/etc/kea/kea.conf
Kea DHCPv4 configuration file: /usr/local/etc/kea/kea-dhcp4.conf
Kea DHCPv6 configuration file: /usr/local/etc/kea/kea-dhcp6.conf
Kea DHCP DDNS configuration file: /usr/local/etc/kea/kea-dhcp-ddns.conf
Kea Control Agent configuration file: /usr/local/etc/kea/kea-ctrl-agent.conf
Kea Netconf configuration file: /usr/local/etc/kea/kea-netconf.conf
keactrl configuration file: /usr/local/etc/kea/keactrl.conf

Process Monitoring - systemd

On a Linux machine with systemd, the status of the Kea processes can by read from the systemd process

# systemctl status kea-dhcp6
● kea-dhcp6.service - Kea DHCPv6 Service
     Loaded: loaded (/etc/systemd/system/kea-dhcp6.service; enabled; vendor preset: disabled)
     Active: active (running) since Thu 2020-11-12 22:50:14 CET; 1 day 10h ago
       Docs: man:kea-dhcp6(8)
   Main PID: 244200 (kea-dhcp6)
      Tasks: 1 (limit: 11784)
     Memory: 5.6M
        CPU: 22.572s
     CGroup: /system.slice/kea-dhcp6.service
             └─244200 /opt/kea/sbin/kea-dhcp6 -c /opt/kea/etc/kea/kea-dhcp6.conf

Nov 12 22:50:14 home01 systemd[1]: Started Kea DHCPv6 Service.
Nov 12 22:50:14 home01 kea-dhcp6[244200]: 2020-11-12 22:50:14.813 INFO  [kea-dhcp6.dhcp6/244200.140267216668800] DHCP6_STARTING Kea DHCPv6 server version 1.9.1 (developm>
Nov 12 22:50:14 home01 kea-dhcp6[244200]: 2020-11-12 22:50:14.813 WARN  [kea-dhcp6.dhcp6/244200.140267216668800] DHCP6_DEVELOPMENT_VERSION This software is a development>

Process Monitoring via Systemd API

systemd exposes the state of managed services via the DBUS API
- a monitoring system can read the DBUS API information
- Example: Monitoring systemd services in realtime with Chronograf https://devconnected.com/monitoring-systemd-services-in-realtime-with-chronograf/
- Example: Prometheus exporter for systemd services https://github.com/povilasv/systemd_exporter

Monitoring via Kea API

Every Kea process exposes a REST/JSON API
This API can be used to monitor the health and function of the Kea services (independent from Stork)
- Python Kea exporter for Prometheus https://pypi.org/project/kea-exporter/
- Source code of the Prometheus Kea exporter: https://github.com/mweinelt/kea-exporter

DHCP Function Monitoring

dhcping is a simple tool to test if a DHCP server responds to DHCP requests and returns a lease
- it requests a lease (DHCPREQUEST) or DHCP option information (DHCPINFORM) from a DHCP Server
- after obtaining a lease, it will release the lease immediately
- Original Homepage: http://www.mavetju.org/unix/general.php
- Updated source: https://github.com/nean-and-i/dhcping

DHCping (1/3)

% sudo ./dhcping -v -s 192.0.2.1 -h 01:02:03:04:05:05 -c 192.0.2.145

---------------------------------------------------------------------------

DHCP REQUEST
packet 250 bytes

nop: 1
htype: 1
hlen: 6
hops: 0
xid: ef0aaf5f
secs: 0
flags: 0
ciaddr: 192.0.2.145
yiaddr: 0.0.0.0
siaddr: 0.0.0.0
giaddr: 0.0.0.0
chaddr: 01:02:03:04:05:05
sname :
fname :
option 53 DHCP message type
	DHCP message type: 3 (DHCPREQUEST)
option 50 Request IP address
	Requested IP address: 192.0.2.145

DHCping (2/3)

Got answer from: 192.0.2.1
packet 300 bytes

nop: 2
htype: 1
hlen: 6
hops: 0
xid: ef0aaf5f
secs: 0
flags: 7f80
ciaddr: no entry found
yiaddr: 0.0.0.0
siaddr: 0.0.0.0
giaddr: 0.0.0.0
chaddr: 01:02:03:04:05:05
sname :
fname :
option 53 DHCP message type
	DHCP message type: 6 (DHCPNAK)
option 54 DHCP Server identifier
	Server identifier: 192.0.2.1
option 56 Message

DHCping (3/3)

DHCP RELEASE
packet 250 bytes

nop: 1
htype: 1
hlen: 6
hops: 0
xid: ef0aaf5f
secs: 0
flags: 0
ciaddr: 192.0.2.145
yiaddr: 0.0.0.0
siaddr: 0.0.0.0
giaddr: 0.0.0.0
chaddr: 01:02:03:04:05:05
sname :
fname :
option 53 DHCP message type
	DHCP message type: 7 (DHCPRELEASE)
option 54 DHCP Server identifier
	Server identifier: 192.0.2.1

DHCPtest

another DHCP test tool
- written in D
- Source: https://github.com/CyberShadow/dhcptest

% ./dhcptest --query
dhcptest v0.7 - Created by Vladimir Panteleev
https://github.com/CyberShadow/dhcptest
Run with --help for a list of command-line options.

Listening for DHCP replies on port 68.
Sending packet:
  op=BOOTREQUEST chaddr=2E:78:71:CA:DA:26 hops=0 xid=8DDD0A71 secs=0 flags=8000
  ciaddr=0.0.0.0 yiaddr=0.0.0.0 siaddr=0.0.0.0 giaddr=0.0.0.0 sname= file=
  1 options:
     53 (DHCP Message Type): discover
Received packet from 192.0.2.8:67:
  op=BOOTREPLY chaddr=2E:78:71:CA:DA:26 hops=0 xid=8DDD0A71 secs=0 flags=8000
  ciaddr=0.0.0.0 yiaddr=192.0.2.115 siaddr=0.0.0.0 giaddr=0.0.0.0 sname= file=
  9 options:
     53 (DHCP Message Type): offer
      1 (Subnet Mask): 255.255.255.0
      3 (Router Option): 192.0.2.1
      6 (Domain Name Server Option): 192.0.2.8, 172.16.1.105
     15 (Domain Name): home.example.com
     51 (IP Address Lease Time): 14400 (4 hours)
     54 (Server Identifier): 192.0.2.8
     58 (Renewal (T1) Time Value): 3600 (1 hour)
     59 (Rebinding (T2) Time Value): 7200 (2 hours)

Monitoring for Pool depletion

Performance suffers at very high pool utilization, because Kea is checking every address in order to see if it is available
If an DHCP pool runs full, there is a risk that DHCP clients will not get an IP address lease and cannot join the network

How to deal with pool depletion

if you encounter address pool depletion, check for the reasons
- lease time too high for the number of DHCP clients in the network
- machines are not releasing their lease on shutdown
- malicious/buggy DHCP client software

Countermeasures to address pool depletion

configure the Microsoft DHCP clients to release their leases on shutdown
- can be done via DHCP option: https://docs.microsoft.com/en-us/openspecs/windows_protocols/ms-dhcpe/4cde5ceb-4fc1-4f9a-82e9-13f6b38d930c
- useful in public places where clients are not coming back
consider switching to IPv6
- make the pool as large as the current Internet ;)

Troubleshooting

The DHCP client

The dhclient component from the ISC DHCP is very flexible
- Instead of the normal dhclient-script, we can create a special debug script
- The debug script will print out the data received from the DHCP server (instead of configuring the network interface)

the DHCP client

A very simple dhclient-script for debugging:

#!/bin/sh
echo "DHCP State:          $reason"
echo "IP Address:          $new_ip_address"
echo "Subnetmask:          $new_subnet_mask"
echo "Broadcast Address:   $new_broadcast_address"
echo "Alias IP Address:    $alias_ip_address"
echo "Alias Netmask:       $alias_subnet_mask"
echo "Routers:             $new_routers"
echo "Domain Name Servers: $new_domain_name_servers"
echo "DNS Search List:     $new_domain_search"
echo "Local domain name:   $new_domain_name"
echo "Network number:      $new_network_number"

the DHCP client

Debugging example:

# sudo dhclient -d -sf /opt/local/sbin/dhclient-script-debug eth0
Internet Systems Consortium DHCP Client 4.2.0
Copyright 2004-2010 Internet Systems Consortium.
All rights reserved.
For info, please visit https://www.isc.org/software/dhcp/
[...]
Listening on BPF/en1/00:26:bb:05:fa:4f
Sending on   BPF/en1/00:26:bb:05:fa:4f
Sending on   Socket/fallback
DHCPREQUEST on en1 to 255.255.255.255 port 67
DHCPREQUEST on en1 to 255.255.255.255 port 67
DHCPACK from 172.16.1.1
DHCP State:          REBOOT
IP Address:          172.16.0.237
Subnetmask:          255.255.0.0
Broadcast Address:   172.16.255.255
Alias IP Address:
Alias Netmask:
Routers:             172.16.1.1
Domain Name Servers: 172.16.1.1 192.168.0.1 205.171.3.65
DNS Search List:
Local domain name:
Network number:      172.16.0.0
bound to 172.16.0.237 -- renewal in 1493 seconds.

the DHCP client

Be careful in production environments
- Do not consume all leases from the DHCP Server during testing

DHCP traffic

DHCP traffic can be inspected using various tools:
- tcpdump / Wireshark
- dhcpdump

tcpdump

tcpdump is a commandline network sniffer that is available for many Unix systems (there is also a version for Windows)
- Binary packages for many Linux/Unix are available
- Homepage: http://www.tcpdump.org/

tcpdump

sudo tcpdump -vv -i en1 -n port 67 and port 68
tcpdump: WARNING: en1: no IPv4 address assigned
tcpdump: listening on en1, link-type EN10MB (Ethernet), capture size 65535 bytes
16:58:41.010931 IP (tos 0x0, ttl 255, id 25564, offset 0, flags [none], proto UDP (17), length 328)
    0.0.0.0.68 > 255.255.255.255.67: [udp sum ok] BOOTP/DHCP, Request from 00:26:bb:05:fa:4f,
               length 300, xid 0x20467eb, Flags [none] (0x0000)
      Client-Ethernet-Address 00:26:bb:87:ff:4f
      Vendor-rfc1048 Extensions
        Magic Cookie 0x63825363
        DHCP-Message Option 53, length 1: Request
        Parameter-Request Option 55, length 10:
          Subnet-Mask, Default-Gateway, Domain-Name-Server, Domain-Name
          Option 119, LDAP, Option 252, Netbios-Name-Server
          Netbios-Node, Netbios-Scope
        MSZ Option 57, length 2: 1500
        Client-ID Option 61, length 7: ether 00:26:bb:87:ff:4f
        Requested-IP Option 50, length 4: 172.16.0.237
        Lease-Time Option 51, length 4: 7776000
16:58:41.057407 IP (tos 0x0, ttl 16, id 0, offset 0, flags [none], proto UDP (17), length 328)
    172.16.1.1.67 > 255.255.255.255.68: [udp sum ok] BOOTP/DHCP, Reply, length 300, xid 0x20467eb, Flags [none]
      Client-Ethernet-Address 00:26:bb:87:ff:4f
      Vendor-rfc1048 Extensions
        Magic Cookie 0x63825363
        DHCP-Message Option 53, length 1: NACK
        Server-ID Option 54, length 4: 172.16.1.1

dhcpdump

dhcpdump is a specialized network sniffer that pretty prints DHCP packets
- Homepage: http://www.mavetju.org/unix/general.php

dhcpdump

# dhcpdump -i wlan0
  TIME: 2010-09-19 17:24:55.002
    IP: 0.0.0.0 (50:63:13:c2:36:dc) > 255.255.255.255 (ff:ff:ff:ff:ff:ff)
    OP: 1 (BOOTPREQUEST)
 HTYPE: 1 (Ethernet)
  HLEN: 6
  HOPS: 0
   XID: 77ca3c11
  SECS: 0
 FLAGS: 0
CIADDR: 0.0.0.0
YIADDR: 0.0.0.0
SIADDR: 0.0.0.0
GIADDR: 0.0.0.0
CHADDR: 50:63:13:c2:36:dc:00:00:00:00:00:00:00:00:00:00
 SNAME: .
 FNAME: .
OPTION:  53 (  1) DHCP message type         1 (DHCPDISCOVER)
OPTION:  50 (  4) Request IP address        172.16.0.200
OPTION:  12 (  9) Host name                 csmobile3
OPTION:  55 ( 13) Parameter Request List      1 (Subnet mask)
                                             28 (Broadcast address)
                                             [...]

dhcpdump

TIME: 2010-09-19 17:24:55.530
    IP: 172.16.1.1 (0:c:42:59:46:ac) > 172.16.0.200 (50:63:13:c2:36:dc)
    OP: 2 (BOOTPREPLY)
 HTYPE: 1 (Ethernet)
  HLEN: 6
  HOPS: 0
   XID: 77ca3c11
  SECS: 0
 FLAGS: 0
CIADDR: 0.0.0.0
YIADDR: 172.16.0.200
SIADDR: 172.16.1.1
GIADDR: 0.0.0.0
CHADDR: 50:63:13:c2:36:dc:00:00:00:00:00:00:00:00:00:00
 SNAME: .
 FNAME: .
OPTION:  53 (  1) DHCP message type         2 (DHCPOFFER)
OPTION:  54 (  4) Server identifier         172.16.1.1
OPTION:  51 (  4) IP address leasetime      3600 (60m)
OPTION:   1 (  4) Subnet mask               255.255.0.0
OPTION:   3 (  4) Routers                   172.16.1.1
OPTION:   6 ( 12) DNS server                172.16.1.1,192.168.0.1,205.171.3.65
