Kea DHCP

(Database and High-Availability options)

Carsten Strotmann, sys4 AG

Created: 2022-03-02 Wed 08:37

In this Chapter

Database backends for Kea
Database setup and maintenance
Host/Reservation Data in the database
High-Availability

Database backend support for Kea

Why a database backend?

The Kea DHCP server can store in a database:
- Lease information
- Host addresses and prefixes
- Host options
- Host names
- Host classification
- Configuration (MySQL only)

Benefits of using a database backend

Faster turn-around for configuration changes in large deployments (many DHCP servers)
Easy access to DHCP information from scripts
Option to build a custom management interface for the DHCP service
High-Availability through database redundancy
Easier to integrate into existing backup systems

Drawbacks of using a database backend

When issuing a lease, Kea DHCP must wait for the storage backend to acknowledge the successful storage of lease information
- Depending on the database setup and implementation, this is often slower then the Kea in-memory (lease-file) storage
Some databases cannot store lease information that reaches beyond the year 2038

PostgreSQL

Powerful, open source object-relational database system
- Flexible and extensible
- Performance is in par with commercial database offerings on Linux/Unix
- PostgreSQL License (permissive open source license)
PostgreSQL:
https://www.postgresql.org

MySQL/MariaDB

MySQL is the most popular (network based) open source SQL database system
- MariaDB is a compatible fork of MySQL by the original MySQL development team
- MySQL/MariaDB is available in most Linux/Unix systems
- MySQL and MariaDB are GPLv2 licensed
MariaDB
https://mariadb.com
MySQL
https://www.mysql.com

Cassandra

Apache Cassandra is a NoSQL database for large amounts of data
- It provides linear scalability and fault-tolerance on commodity hardware
- Support for the Cassandra Database in Kea is deprecated
- Cassandra is available under the Apache License 2.0
Cassandra Database:
https://cassandra.apache.org

Database setup

Preparing the database

Steps required before Kea can connect to a database system:
- Create the database
- Create a user for Kea in the database system
- Set the access permissions on the Kea database

PostgreSQL (1/2)

Most PostgreSQL installations come with a dedicated operating system user account for the PostgreSQL database (in our examples, the user postgres).
- All database configuration steps should be done as this database user

PostgreSQL (2/2)

Creating the database for storing Kea lease information and giving the user kea access permissions on this database

(kea-server)# su - postgres
(kea-server)$ psql -U postgres
Password for user postgres:
psql (12.4)
Type "help" for help.
postgres=# CREATE USER kea WITH PASSWORD 'secure-password';
CREATE ROLE
postgres=# CREATE DATABASE kea_lease_db;
CREATE DATABASE
# GRANT ALL PRIVILEGES ON DATABASE kea_lease_db TO kea;
postgres=# \q

Preparing a MariaDB/MySQL database (1/2)

To prepare the MySQL/MariaDB database for Kea, first the database are created (in this example, one database for leases)

mysql -u root -p
Enter password:
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 8
Server version: 10.4.14-MariaDB MariaDB Server

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]> CREATE DATABASE kea_lease_db;
Query OK, 1 row affected (0.000 sec)

Preparing a MariaDB/MySQL database (2/2)

In the next step, the database user kea is created and given access to the lease-database:

MariaDB [(none)]> CREATE USER 'kea'@'localhost' IDENTIFIED BY 'secure-password';
Query OK, 0 rows affected (0.006 sec)

MariaDB [(none)]> GRANT ALL ON kea_lease_db.* TO 'kea'@'localhost';
Query OK, 0 rows affected (0.005 sec)

MariaDB [(none)]> quit
Bye

MySQL performance tuning

If MySQL is used with the InnoDB database backend (the default), changing the MySQL internal value innodb_flush_log_at_trx_commit from default value 1 to 2 can result with huge gain in Kea performance
- It can be set per session for testing:
```
mysql> SET GLOBAL innodb_flush_log_at_trx_commit=2;
mysql> SHOW SESSION VARIABLES LIKE 'innodb_flush_log%';
```
- or permanently in /etc/mysql/my.cnf
```
[mysqld]
innodb_flush_log_at_trx_commit=2
```

Changing this value can create problems during data recovery after a database crash - please check the MySQL documentation

https://dev.mysql.com/doc/refman/8.0/en/innodb-parameters.html

Maintaining the Kea-Database with kea-admin

Initializing the Kea database (1/2)

The command db-init of the kea-admin tool is used to initialize the database
- While it is possible to initialize the SQL databases with the SQL-scripts provided with Kea, it is recommended to use the kea-admin tool, as it provides extra security checks in the process
Example: initializing a PostgreSQL database for lease database

# kea-admin db-init pgsql -u kea -h 127.0.0.1 -p secure-password -n kea_lease_db
Checking if there is a database initialized already. Please ignore errors.
Initializing database using script /opt/kea/share/kea/scripts/pgsql/dhcpdb_create.pgsql
psql:/opt/kea/share/kea/scripts/pgsql/dhcpdb_create.pgsql:142: NOTICE:  function lease4dumpheader() does not exist, skipping
psql:/opt/kea/share/kea/scripts/pgsql/dhcpdb_create.pgsql:150: NOTICE:  function lease4dumpdata() does not exist, skipping
psql:/opt/kea/share/kea/scripts/pgsql/dhcpdb_create.pgsql:180: NOTICE:  function lease6dumpheader() does not exist, skipping
psql:/opt/kea/share/kea/scripts/pgsql/dhcpdb_create.pgsql:188: NOTICE:  function lease6dumpdata() does not exist, skipping
psql:/opt/kea/share/kea/scripts/pgsql/dhcpdb_create.pgsql:892: WARNING:  there is already a transaction in progress
Database version reported after initialization: 6.1

Initializing the Kea database (2/2)

Example: initializing a MySQL/MariaDB database for leases

# kea-admin db-init mysql -u kea -p secure-password -n kea_lease_db
Checking if there is a database initialized already. Please ignore errors.
Verifying create permissions for kea
MySQL Version is: 10.4.14-MariaDB
Initializing database using script /opt/kea/share/kea/scripts/mysql/dhcpdb_create.mysql
mysql returned status code 0
Database version reported after initialization: 9.3

Upgrade of database schema (1/3)

Sometimes a new Kea version may require a new database schema
- The existing database will need to be upgraded
- After upgrade, it may be impossible to subsequently downgrade to an earlier version
- Before upgrading, please make sure that the database is backed up
- The kea-admin db-upgrade command can be used to upgrade an existing database

Upgrade of database schema (2/3)

To check the current version of the database, use the following command (<db-product> can be mysql or pgsql):
```
$ kea-admin db-version <db-product> -u <db-user> -p <db-password> -n <db-name>
```
If the version does not match the minimum required for the new version of Kea (as described in the release notes), the database needs to be upgraded.
See also Databases and Database Version Numbers
https://kea.readthedocs.io/en/latest/arm/admin.html#kea-database-version

Upgrade of database schema (3/3)

The kea-admin command is used to upgrade the database schema of the database (<db-product> can be mysql or pgsql):
```
$ kea-admin db-upgrade <db-product> -u database-user -p database-password -n database-name
```

Kea Database Configuration

Configuration Example: Lease Database in PostgreSQL

Example of a lease database configuration in Kea (file kea-dhcp4.conf or kea-dhcp6.conf)

for MySQL/MariaDB, just change the type to mysql

 "lease-database": {
     "type": "postgresql",
     "name": "kea_lease_db",
     "user": "kea",
     "password": "secure-password",
     "host": "localhost"
},

Test the configuration

# kea-dhcp4 -t /opt/kea/etc/kea/kea-dhcp4.conf

2020-10-22 11:43:23.772 INFO  [kea-dhcp4.hosts/61595.139911418369920]
           HOSTS_BACKENDS_REGISTERED the following host backend types are available: mysql
2020-10-22 11:43:23.773 INFO  [kea-dhcp4.dhcpsrv/61595.139911418369920]
           DHCPSRV_CFGMGR_SOCKET_TYPE_DEFAULT "dhcp-socket-type" not specified , using default socket type raw
2020-10-22 11:43:23.774 INFO  [kea-dhcp4.dhcpsrv/61595.139911418369920]
           DHCPSRV_CFGMGR_NEW_SUBNET4 a new subnet has been added to configuration: 192.0.2.0/24 with params: t1=900, t2=1800, valid-lifetime=3600

Host/Reservation in a SQL Database

Host/Reservation in a SQL Database - Why?

Larger deployments might want to change the DHCP reservations dynamically and programatically via the API
- The Host Commands hook (part of the Premium hooks package) adds a number of new commands to Kea used to query and manipulate host reservations
- see Chapter 3 of this training for a discussion of the Host-Commands API
The Host Commands hook requires a database for storing the host reservations
If reservations are specified in both file and database, file reservations take precedence over the ones in the database

Creating a PostgreSQL database to store host reservations

Creating the database for storing Kea host information (reservations) and giving the user kea access permissions on this database

(kea-server)# su - postgres
(kea-server)$ psql -U postgres
Password for user postgres:
psql (12.4)
Type "help" for help.

postgres=#  CREATE DATABASE kea_host_db;
CREATE DATABASE
postgres=# GRANT ALL PRIVILEGES ON DATABASE kea_host_db TO kea;
GRANT
postgres=# \q

Initializing the Host reservation database

The command db-init of the kea-admin tool is used to initialized the database
- While it is possible to initialize the SQL databases with the SQL-scripts provided with Kea, it is recommended to use the kea-admin tool, as it provides extra security checks in the process
Example: initializing a PostgreSQL database for use as a host reservation database

# kea-admin db-init pgsql -u kea -h 127.0.0.1 -p secure-password -n kea_host_db
Checking if there is a database initialized already. Please ignore errors.
Initializing database using script /opt/kea/share/kea/scripts/pgsql/dhcpdb_create.pgsql
psql:/opt/kea/share/kea/scripts/pgsql/dhcpdb_create.pgsql:142: NOTICE:  function lease4dumpheader() does not exist, skipping
psql:/opt/kea/share/kea/scripts/pgsql/dhcpdb_create.pgsql:150: NOTICE:  function lease4dumpdata() does not exist, skipping
psql:/opt/kea/share/kea/scripts/pgsql/dhcpdb_create.pgsql:180: NOTICE:  function lease6dumpheader() does not exist, skipping
psql:/opt/kea/share/kea/scripts/pgsql/dhcpdb_create.pgsql:188: NOTICE:  function lease6dumpdata() does not exist, skipping
psql:/opt/kea/share/kea/scripts/pgsql/dhcpdb_create.pgsql:892: WARNING:  there is already a transaction in progress
Database version reported after initialization: 6.1

Configuration Example: Host Database in PostgreSQL

Host database for PostgreSQL configuration in Kea (file kea-dhcp4.conf or kea-dhcp6.conf)

for MySQL/MariaDB, just change the type to mysql

 "hosts-database": {
     "type": "postgresql",
     "name": "kea_host_db",
     "user": "kea",
     "password": "secure-password",
     "host": "localhost"
},

Using Read-Only Databases with Host Reservations

The host reservation information might be stored in a database that contains other (sensitive) inventory information for the network
In some cases, for policy and security reasons, the Kea DHCP server should not be able to write into this database
- Read-only access for retrieving reservations for clients and/or assigning specific addresses and options, can be configured explicitly in Kea with the read-only mode
```
"Dhcp4": {
  "hosts-database": {
      "readonly": true,
      ...
  },
  ...
}
```

Recovering from Database failures

Recovering from Database failures (1/3)

When operating Kea with a database backend, the database or the connection to the database might fail
- During server start-up, the inability to connect to the database is considered fatal and the server will exit
During dynamic reconfiguration, the databases are disconnected and then reconnected using the new configuration
- If connectivity to the database(s) cannot be established, the server will log a fatal error but remain up.
- It will be able to process commands but will not serve clients
  - This allows the configuration to be fixed via a remote command, if required

Recovering from Database failures (2/3)

During normal operations, if connectivity to database is lost and automatic recovery is enabled …
- … the server will disconnect from all databases
- … and then attempt to reconnect them
During the recovery process, the server will cease serving clients, but continue to respond to commands
- Once connectivity to all databases is restored, the server will return to normal operations
- If connectivity cannot be restored after max-reconnect-tries, the server will issue a fatal error and exit

Recovering from Database failures (3/3)

The parameter reconnect-wait-time configures number of milliseconds the server will wait between attempts to reconnect to the database after connectivity has been lost
- The default value for MySQL and PostgreSQL is 0, which disables automatic recovery and causes the server to exit immediately upon detecting the loss of connectivity to a database

High Availability

DHCP High-Availability

DHCP is a critical resource in most networks
- If the DHCP service is down, machines and computers cannot join the network
DHCP administrators like to make the DHCP service redundant and high-available

Kea High-Availability options

Kea DHCP supports different high availability (HA) options
- Some require only configuration changes
- Other require the (free) HA hook
Kea does not support the standardized DHCPv6 fail-over protocol (RFC 8156 "DHCPv6 Failover Protocol")
https://tools.ietf.org/html/rfc8156
- It supports a HA implementation that aligns with the Kea software design and covers most use-cases

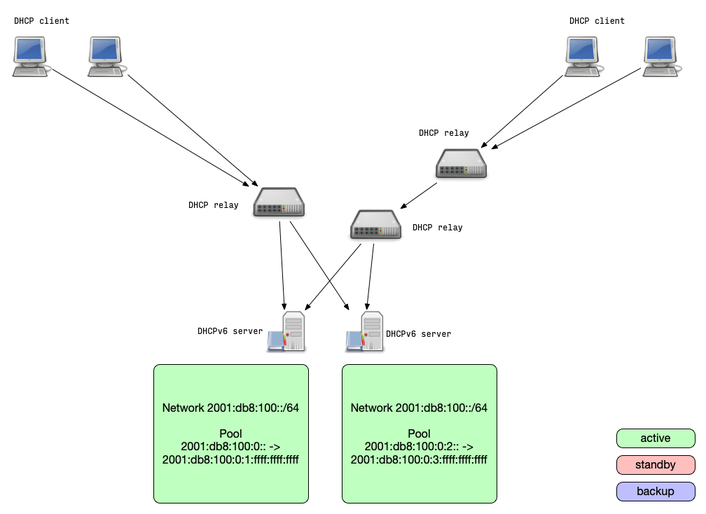

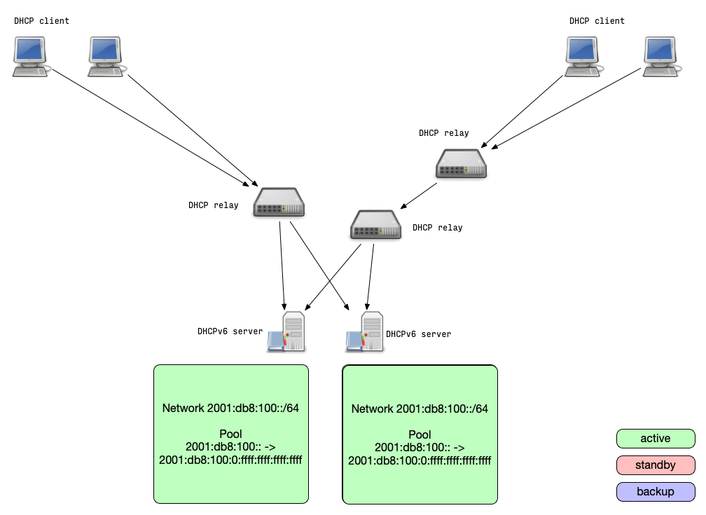

DHCPv6 Split Pool / Shared Pool

The DHCPv6 split pool or shared pool HA solution are independent from the DHCPv6 server implementation
These HA solutions do not require any synchronization between the DHCP server
These solutions make use of the vast address space available in one IPv6 /64 subnet
These solutions are not good solutions for DHCPv4, because the address space in IPv4 is too small

DHCPv6 Split Pool

Split-Pool: because one IPv6 /64 is so large, it usually can be split in two parts that are served by two independent DHCPv6 servers
- The pools are not overlapping, it is impossible that the two DHCPv6 servers will return the same lease address to different clients
- If one DHCPv6 server stops responding, the clients will receive a new lease from the remaining DHCPv6 server (after lease expiry)

DHCPv6 Split Pool

DHCPv6 Shared Pool

Shared-Pool: two DHCPv6 server are authoritative for the same addresses from a pool
- Because of the size of one IPv6 /64 subnet, the chance that both servers give out the same address to different clients is statistically very low
  - and if they did, IPv6 duplicate address detection (DAD) will cover this rare edge case
- If one DHCPv6 server stops responding, the clients will receive a new lease from the remaining DHCPv6 server (after lease expiry)

DHCPv6 Shared Pool

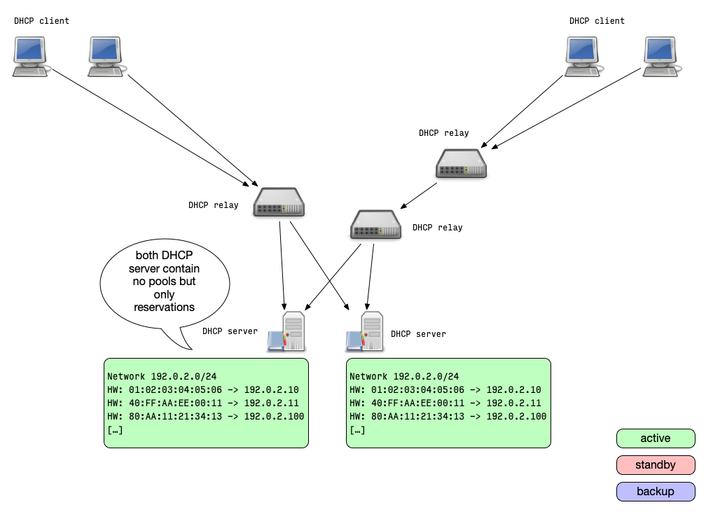

IPv4/IPv6 pure static DHCP

The pure static solution also works with any DHCP server, in IPv4 and IPv6 networks
- The idea is to not use dynamic allocation of addresses, but only static reservations
- Two or more DHCP server are equipped with the same reserveration configuration
- Each server will always return the same IP address lease to the same client
This solution requires an out-of-band synchronization of the reservation
- This could be done on the database level with a shared host reservation database

IPv4/IPv6 pure static DHCP

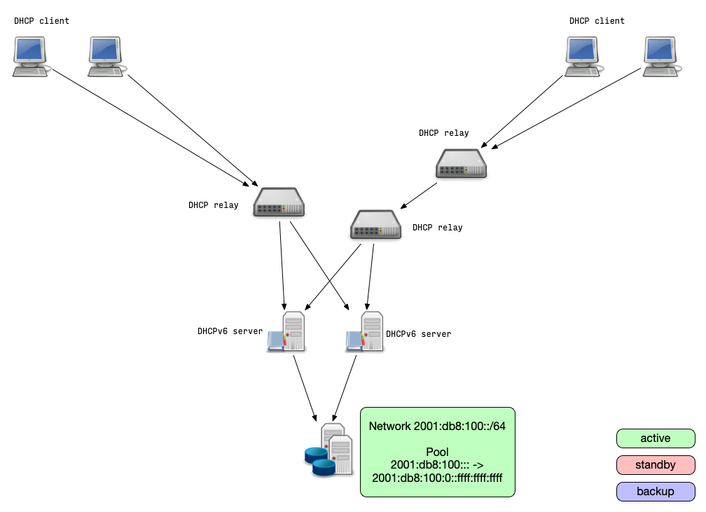

IPv4/IPv6 shared database

The shared database solution moves the redundancy to the database level
- This solutions allows high availability with more than two DHCP server nodes
- Two or more DHCP server are connected to the same (logical) database containing the lease information
- The database itself should be made high available
- All DHCP servers read and write lease information from/to the same database
Database locking can lead to performance degradation(!) on high rate of leases/renewals

IPv4/IPv6 shared database

High Availability Hook

Using the Kea DHCP High-Availability extension (HA hook) is the most feature rich high availability solution
The HA hook offers different operation modes
- Load-balancing: all DHCP server are active and return leases
- Hot-standby: all DHCP server are in sync but only one is active and returns leases
- Passive-backup: one DHCP server is active and send lease database updates to a number of backup servers.

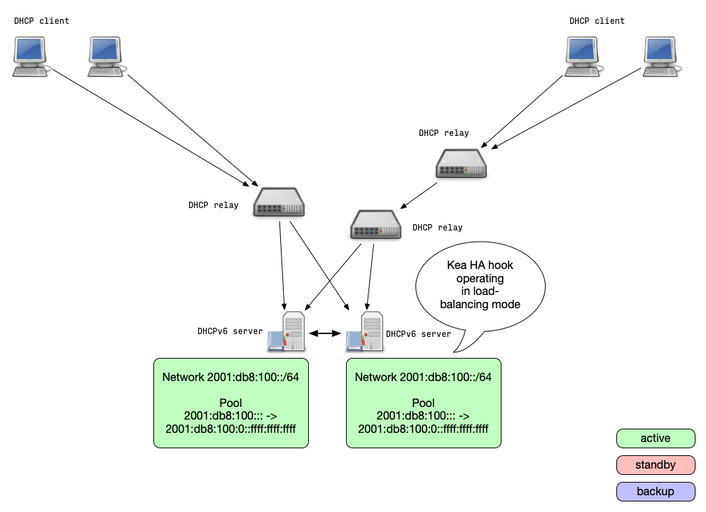

Kea HA Mode: load-balancing

When operating in load-balancing mode, two Kea DHCP server are active and respond to lease requests
- The lease information is synced between the Kea DHCP HA servers
- The pools are split 50/50 between the two DHCP servers
- Every DHCP server can take over the full service if needed
- Via the HA protocol a DHCP HA node will detect if one partner node is down and takes over the service
  - Once the partner is online again, the lease database is synced

Kea HA Mode: load-balancing

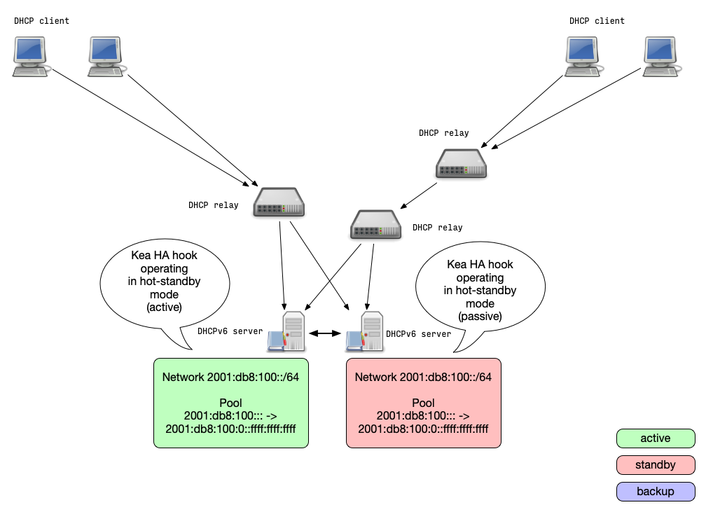

Kea HA Mode: hot-standby

A Kea DHCP cluster configured for the hot-standby mode will have the primary node serving DHCP clients and another node (secondary) only receiving the lease-database updates, but not serving clients
- If the secondary server detects the failure of the primary, it starts responding to all DHCP queries

Kea HA Mode: hot-standby

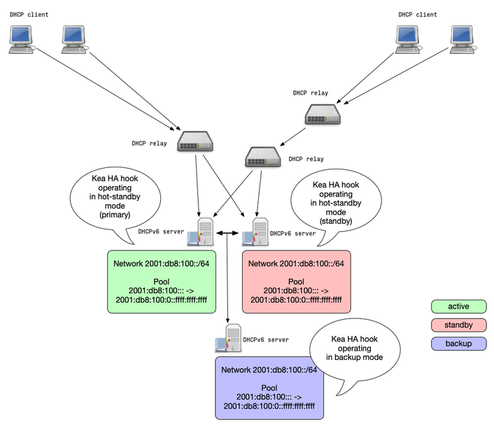

Kea HA Mode: Backup Servers

Kea DHCP supports any number of backup servers
- Backup server receive lease database updates but are not an active part of an HA setup
- Backup server can be deployed in addition to the other Kea HA modes

Kea HA Mode: Backup Server

Kea HA Mode: passive-backup

In the passive-backup configuration, only one Kea server is active and is serving leases to the clients
- Any number of passive (not answering to clients) backup servers receive lease database backups
- Since Kea 1.7.8, the active server does not need to wait for a lease update confirmation from the backup servers before giving the lease to a client
  - this reduces the latency compared to the other HA modes
In case of an failure of the active server, a backup server needs to be manually promoted to be active
- This could be automated outside of Kea with API calls from a monitoring system

Kea HA Mode: passive-backup

Example Configuration: Kea DHCP Failover Cluster

Kea HA Configurations

The Kea HA configuration parts are symmetric, all HA peers can share an almost identical configuration file
- the only difference in the HA configuration is the this-server-name parameter
The HA mode is selected with the mode parameter

Example Load-Balancing Configuration

"Dhcp4": {
    "hooks-libraries": [{
        "library": "/usr/lib/kea/hooks/libdhcp_lease_cmds.so", "parameters": { }
    }, {
        "library": "/usr/lib/kea/hooks/libdhcp_ha.so", "parameters": {
            "high-availability": [{
                "this-server-name": "server1",
                "mode": "load-balancing",
                "heartbeat-delay": 10000, "max-response-delay": 40000, "max-ack-delay": 5000,
                "max-unacked-clients": 5,
                "peers": [{
                    "name": "server1",
                    "url": "http://192.0.2.33:8000/",
                    "role": "primary", "auto-failover": true
                }, {
                    "name": "server2",
                    "url": "http://192.0.2.66:8000/",
                    "role": "secondary", "auto-failover": true
                }, {
                    "name": "server3",
                    "url": "http://192.0.2.99:8000/",
                    "role": "backup",
                    "basic-auth-user": "foo", "basic-auth-password": "bar",
                    "auto-failover": false
                }]
            }]
        }
    }],
[...]

Example Hot-Standby Configuration

"Dhcp4": {
    "hooks-libraries": [{
        "library": "/usr/lib/kea/hooks/libdhcp_lease_cmds.so",  "parameters": { }
    }, {
        "library": "/usr/lib/kea/hooks/libdhcp_ha.so", "parameters": {
            "high-availability": [{
                "this-server-name": "server1",
                "mode": "hot-standby",
                "heartbeat-delay": 10000, "max-response-delay": 40000,
                "max-ack-delay": 5000,    "max-unacked-clients": 5,
                "peers": [{
                    "name": "server1",
                    "url": "http://192.0.2.33:8000/",
                    "role": "primary", "auto-failover": true
                }, {
                    "name": "server2",
                    "url": "http://192.0.2.66:8000/",
                    "role": "standby", "auto-failover": true
                }, {
                    "name": "server3",
                    "url": "http://192.0.2.99:8000/",
                    "basic-auth-user": "foo",  "basic-auth-password": "bar",
                    "role": "backup",  "auto-failover": false
                }]
            }]
        }
    }],
    [...]

Kea HA Maintenance

Sending control commands to the Kea HA Module

As many other parts of the Kea system, the HA module can be controlled over the network with the REST-API
- it receives commands in JSON format via the Kea Control Agent (CA)
- The following slides give examples of useful API commands
- More commands and details can be found in the Kea Reference Manual
  https://kea.readthedocs.io/en/latest/arm/hooks.html#control-commands-for-high-availability

Database synchronization

The ha-sync command triggers the server to sync the lease database with the selected peer

{   "command": "ha-sync",
    "service": [ "dhcp4 "],
    "arguments": {
        "server-name": "server2",
        "max-period": 60
    }
}

Retrieving the HA status

The command ha-heartbeat can be used to check the current state of a Kea DHCP server HA node
```
{ "service": [ "dhcp4" ], "command": "ha-heartbeat" }
```

The returned JSON structure describes the current DHCP server state

{
  "result": 0,
  "text": "HA peer status returned.",
  "arguments":
    {
        "state": "partner-down",
        "date-time": "Thu, 07 Nov 2019 08:49:37 GMT"
    }
}

Fetching the HA configuration

With the status-get command, the administrator can request the current HA configuration from a Kea DHCP server node

{
    "result": 0,
    "text": "",
    "arguments": { "pid": 1234,
                   "uptime": 3024,
                   "reload": 1111,
                   "high-availability": [{
                     "ha-mode": "load-balancing",
                     "ha-servers": {
                        "local": {
                          "role": "primary",
                          "scopes": [ "server1" ],
                          "state": "load-balancing" },
                    "remote": {
                        "age": 10,
                        "in-touch": true,
                        "role": "secondary",
                        "last-scopes": [ "server2" ],
   [...]
                        "analyzed-packets": 8 }
                }}],
        "multi-threading-enabled": true,
        "thread-pool-size": 4,
        "packet-queue-size": 64
    }
}

Controlling Maintenance Mode

Before removing a Kea DHCP server from a HA setup, the server should be set into maintenance mode
- The commands ha-maintenance-start and ha-maintenance-cancel commands can be use to bring a server in or out of maintenance mode

Decision tree for production systems

"so many options, which should I implement?"

Kea offers many different high-availability options
- For an user new to Kea or DHCP administration, this can be a hard choice
The next slides give some general recommendations and guidance on how to select an high-availability option for a Kea deployment

Load-balancing vs. hot-standby

As the name implies, in the load-balancing mode the load is distributed across both active DHCP servers
- With complex client classing rules, this can be faster than a single active server
- The load-balancing mode requires a 50/50 split of the pools across both HA server nodes
The hot-standby mode is simpler
- Only one active server, one active log file for trouble shooting
- No split pools required

HA Module vs. shared database

A shared database setup offers redundancy for more than two active DHCP servers
In a shared database setup, two clients might be offered the same IP address
- One will succeed, the other will get a DHCPNAK from the server and has to start the DHCP process again.
The HA module works with the memfile lease database, which offers better performance most of the time compared to an SQL database

HA Module vs. split/shared Pool

Split- or shared pools only work well with DHCPv6
- These are good options for IPv6-only networks
- Split- or shared pools are simple and easy to maintain
The HA module is more universal
- It works for DHCPv4 and DHCPv6 and across all supported lease file storage back ends (memfile and SQL-Database)

Resources

Kea Performance Optimization
https://kb.isc.org/docs/en/kea-performance-optimization
MariaDB 10.x and Kea
https://kb.isc.org/docs/en/maria-10x-and-kea
Using the Kea Configuration Backend
https://kb.isc.org/docs/en/using-the-kea-configuration-backend
